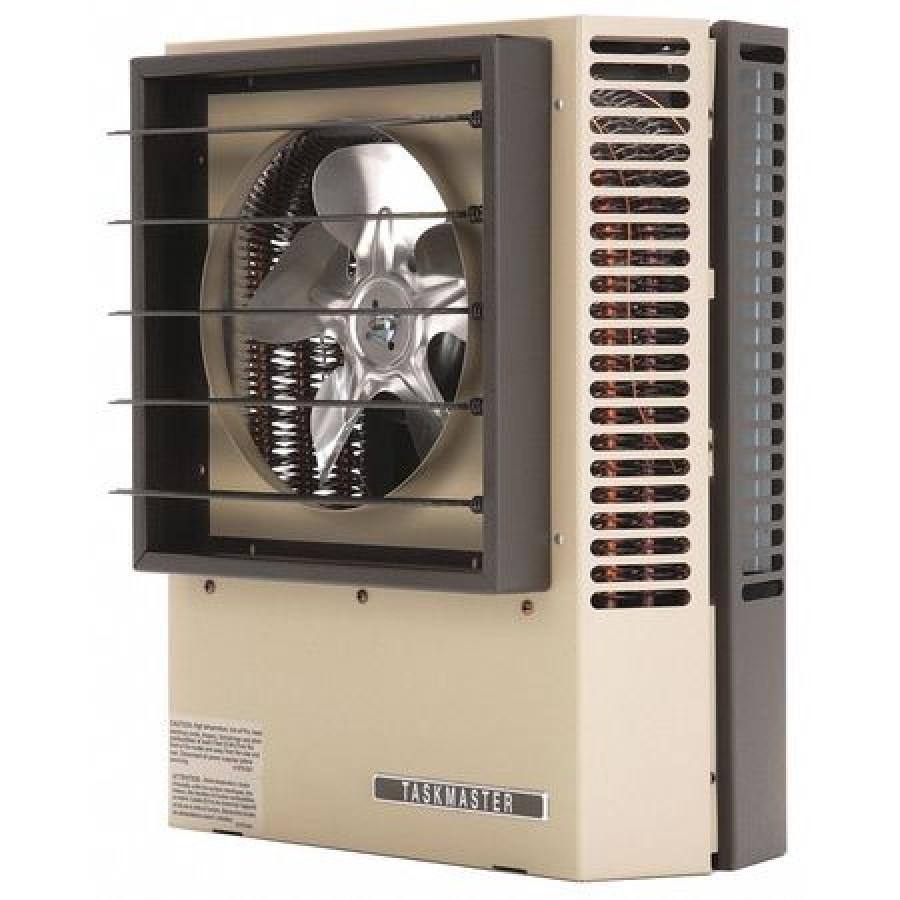

Electric Wall & Ceiling Unit Heater, Overall Height 17 3/4 in, Overall Width 14 7/16 in, Overall Depth 6 1/2 in, Air Flow 400 cfm, Air Temp. Rise 40 Degrees F, Voltage 208V AC, 1 or 3 Phase, Wattage Output 5kW, Heating Method Fan Forced, Heating Capacity 17,100 BtuH, Mounting Location Wall, Horizontal Air Throw 12 ft, Frequency 60 Hz, Amperage 13.9A/24.1A, Control Type Thermostat, Contactor Coil Voltage 208V AC, Housing Color Brown, Housing Finish Powder Coated, Housing Material Steel
Features
- Depth: 6-1/2″
- Height: 17-3/4″
- Housing Material: Steel
- Includes: Adjustable Louvers, Direct Wire with Hinged and Latched Access Door
- Width: 14-15/32″
- Mounting Type: Wall/Ceiling
- Phase: 1 or 3
- Air Flow: 400 cfm
- Standards: ETL Listed for US & Canada
- Item: Electric Wall & Ceiling Unit Heater
- Electric Heater Item: Electric Unit Heater
- Heater Voltage: 208VAC
- Vertical Mounting H: 9 ft
- kW: 5.0
- Contactor Coil Voltage: 208V AC
- Features: Spiral Brazed Steel Fins, Manual Reset, Totally Enclosed, Automatic Reset Linear Thermal Protector, Over Heat Protection, Fully Assembled
- Housing Finish: Powder Coated
- Horizontal Air Throw: 12 ft
- Hz: 60
- Heater Mounting Type: Ceiling, Wall
- Temp. Rise: 40 Degrees F
- Electric Heater Phase: 1/3
- Manufacturers Warranty Length: 1 yr
- Amps AC: 24.1/13.9
- BtuH: 17.1
- Vertical Floor Coverage: 12 ft
- Voltage: 208V AC
- Requires: Mounting Bracket, Thermostat
- Heating Method: Fan Forced
- Overall Height: 17 3/4 in
- Overall Width: 14 7/16 in
- Air Temp. Rise: 40 Degrees F
- Control Type: Thermostat
- Heating Capacity: 17,100 BtuH
- Housing Color: Brown
- Voltage, Phase: 208V AC, 1 or 3-phase
- Overall Dimensions – H x W x D: 17-3/4 in x 14-7/16 in x 6-1/2 in
- Amperage: 13.9A/24.1A
- Frequency: 60 Hz
- Wattage Output: 5kW
- Overall Depth: 6 1/2 in
- Zoro Benefits: 7,000+ Brands. Free Shipping. Hassle Free Returns.
“
- Item Type: Electric Wall & Ceiling Unit Heater
- Brand: MARKEL PRODUCTS
- Manufacturer Part Number: F2F5105N
