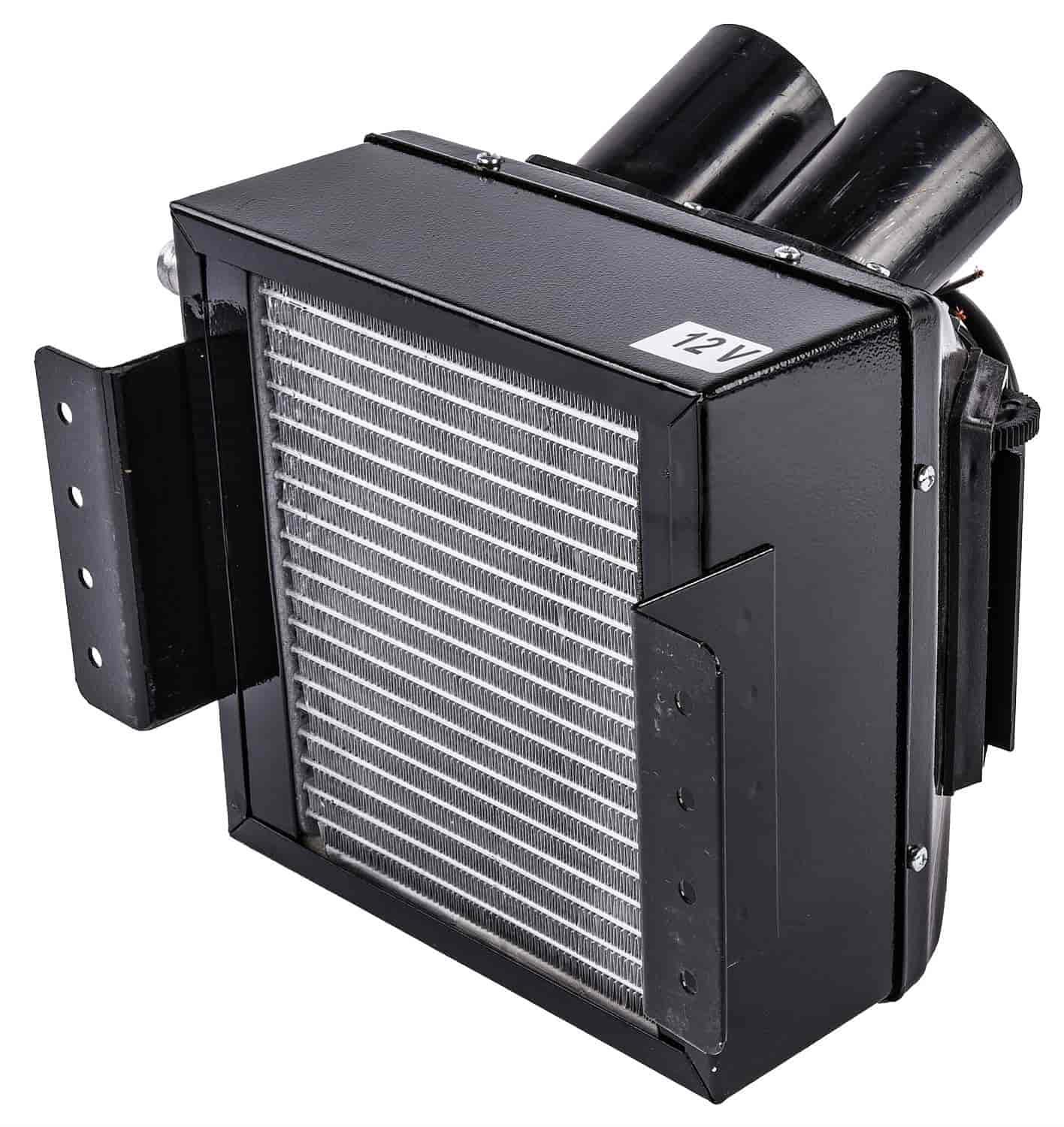

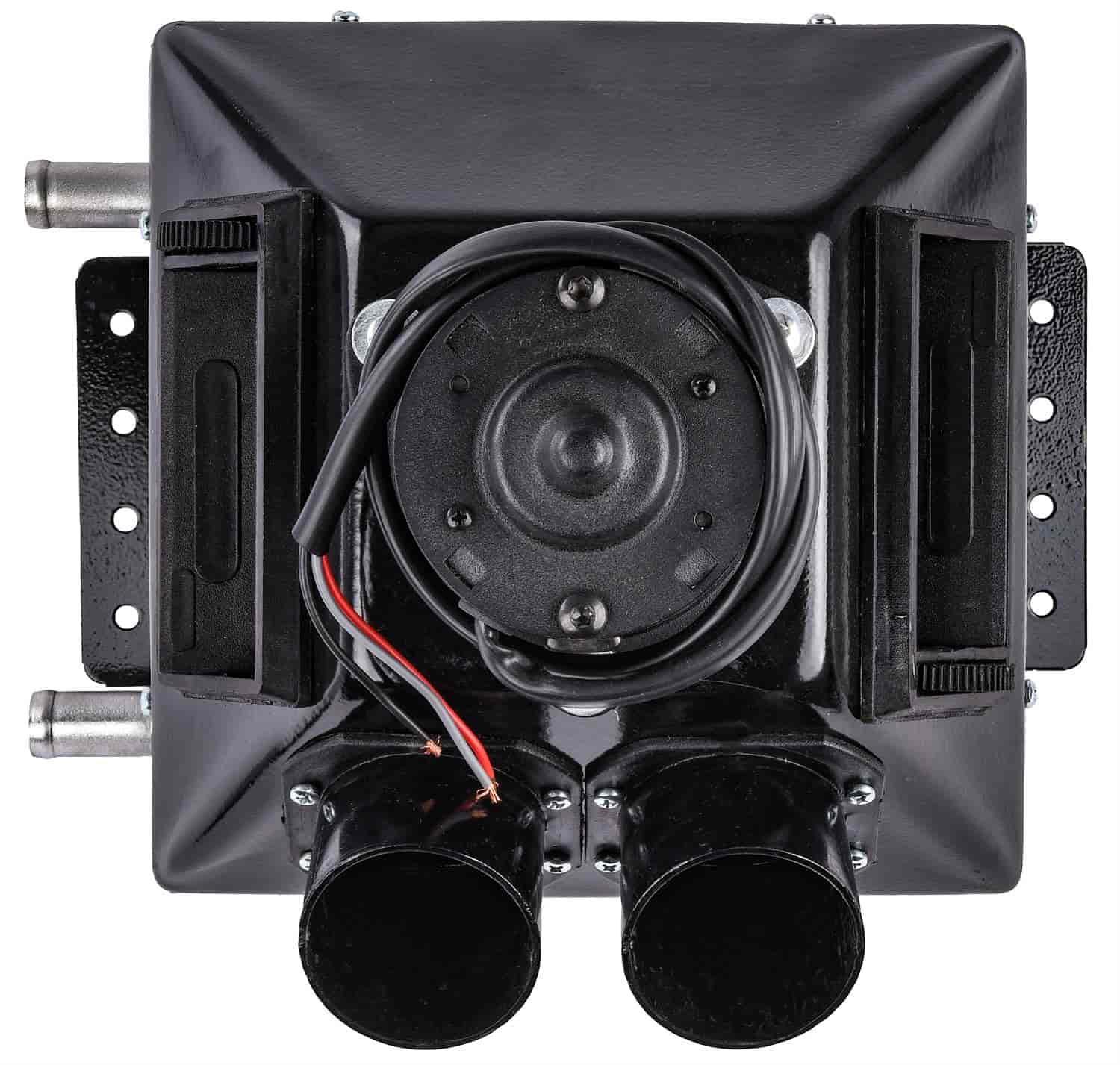

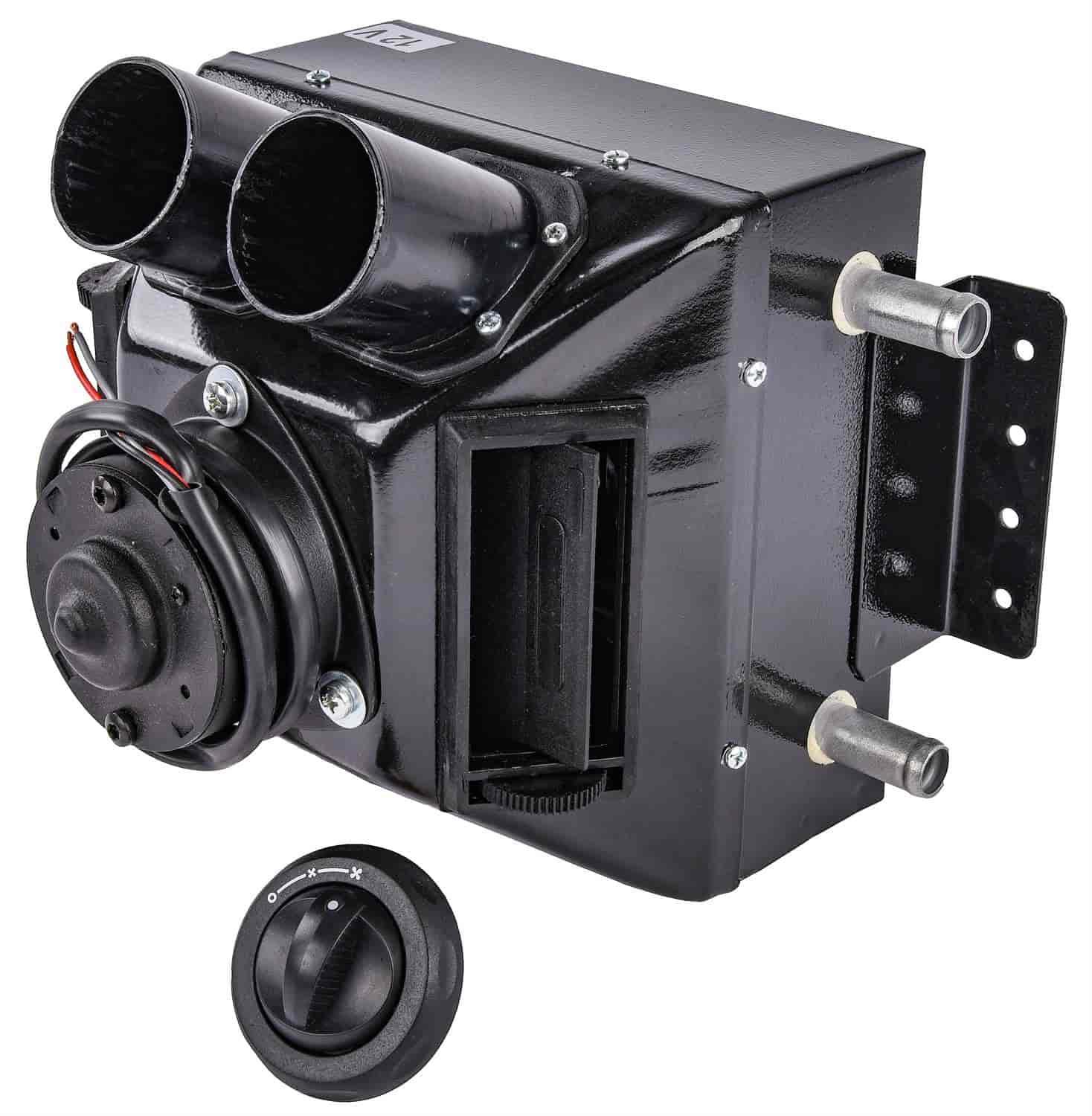

Auxiliary Heater Assembly
2-Speed Fan
Adjustable Louvers for Cabin Heat
Wall or Floor Mount
Powder Coated Steel Housing
Includes
(2) 2 in. Hose Adapters for Defrost or Louvers

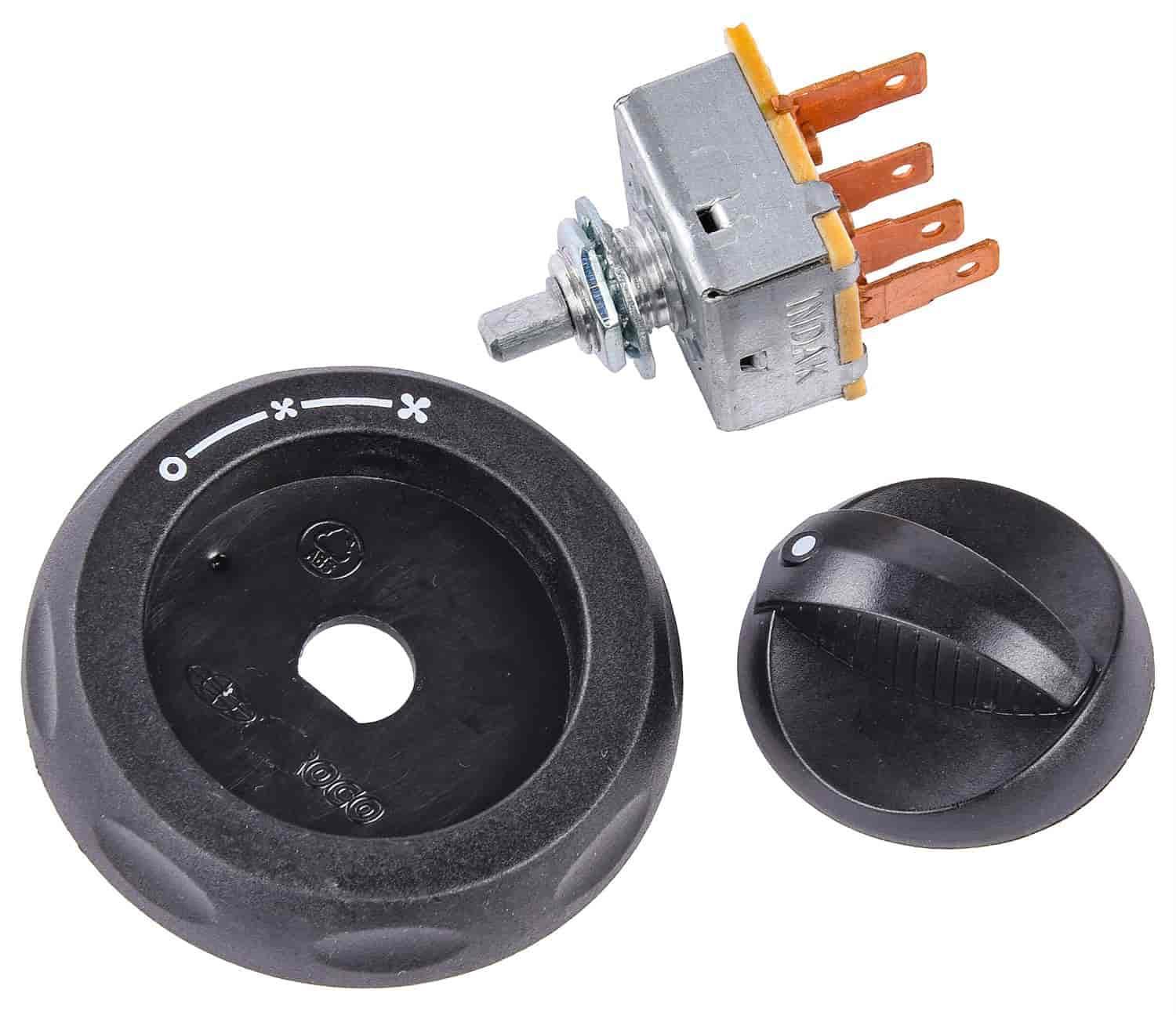

3-Position Switch with Bezel & Knob

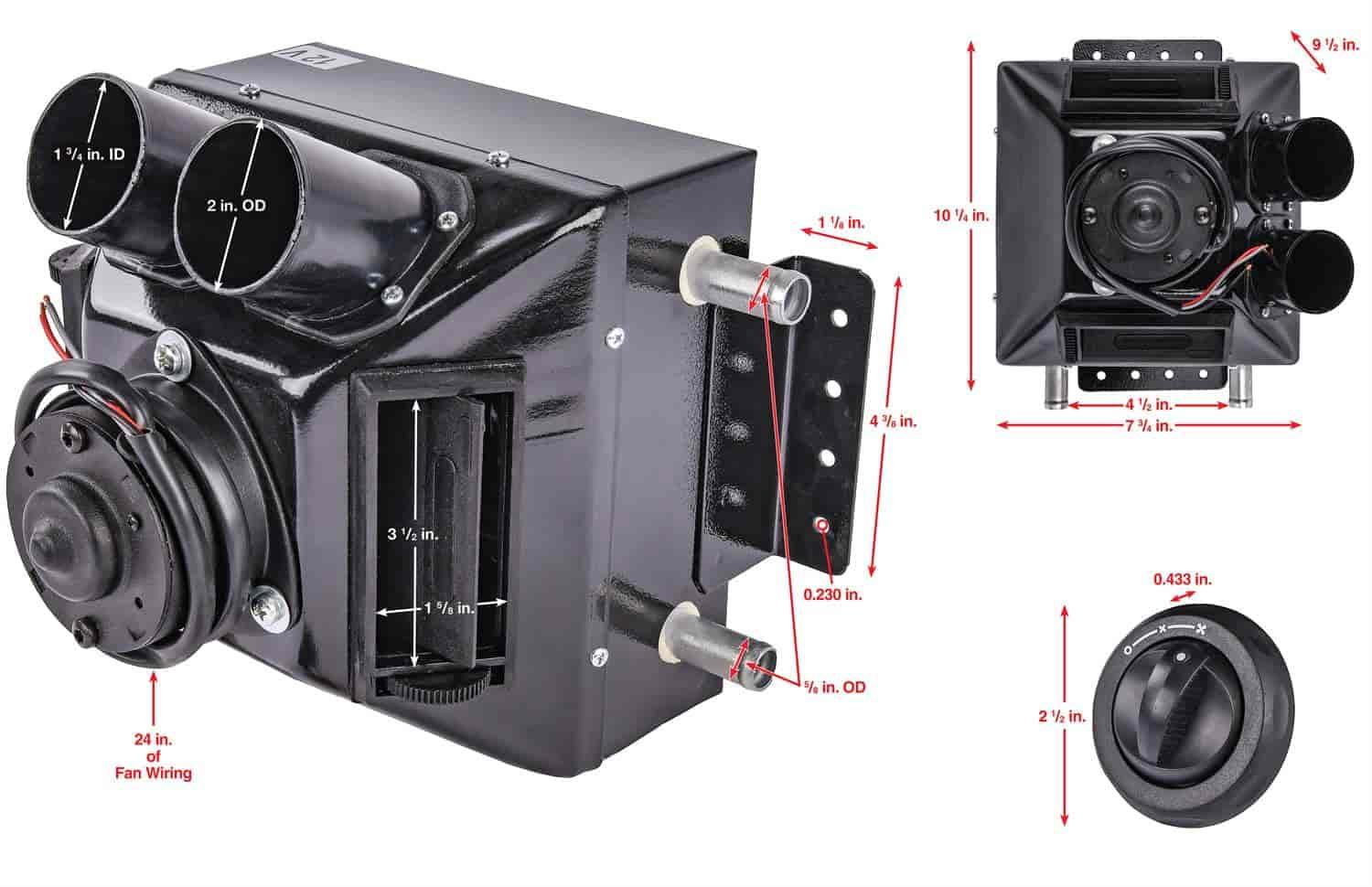

Overall dimensions: 10 1/4 in. L x 7 3/4 in. W x 9 1/2 in. H
Settings:
Low: 15,000 BTU at 200 CFM using 4 Amps
High: 22,000 BTU at 325 CFM using 9 Amps
Heater louvers are adjusted by roller wheels
This assembly makes use of the engine’s coolant. You will have to tap into the engine’s cooling system for exit and return lines.
Fan wiring length: 24 in.
The fan must be wired into vehicle’s wiring
Both mounting pads feature four holes

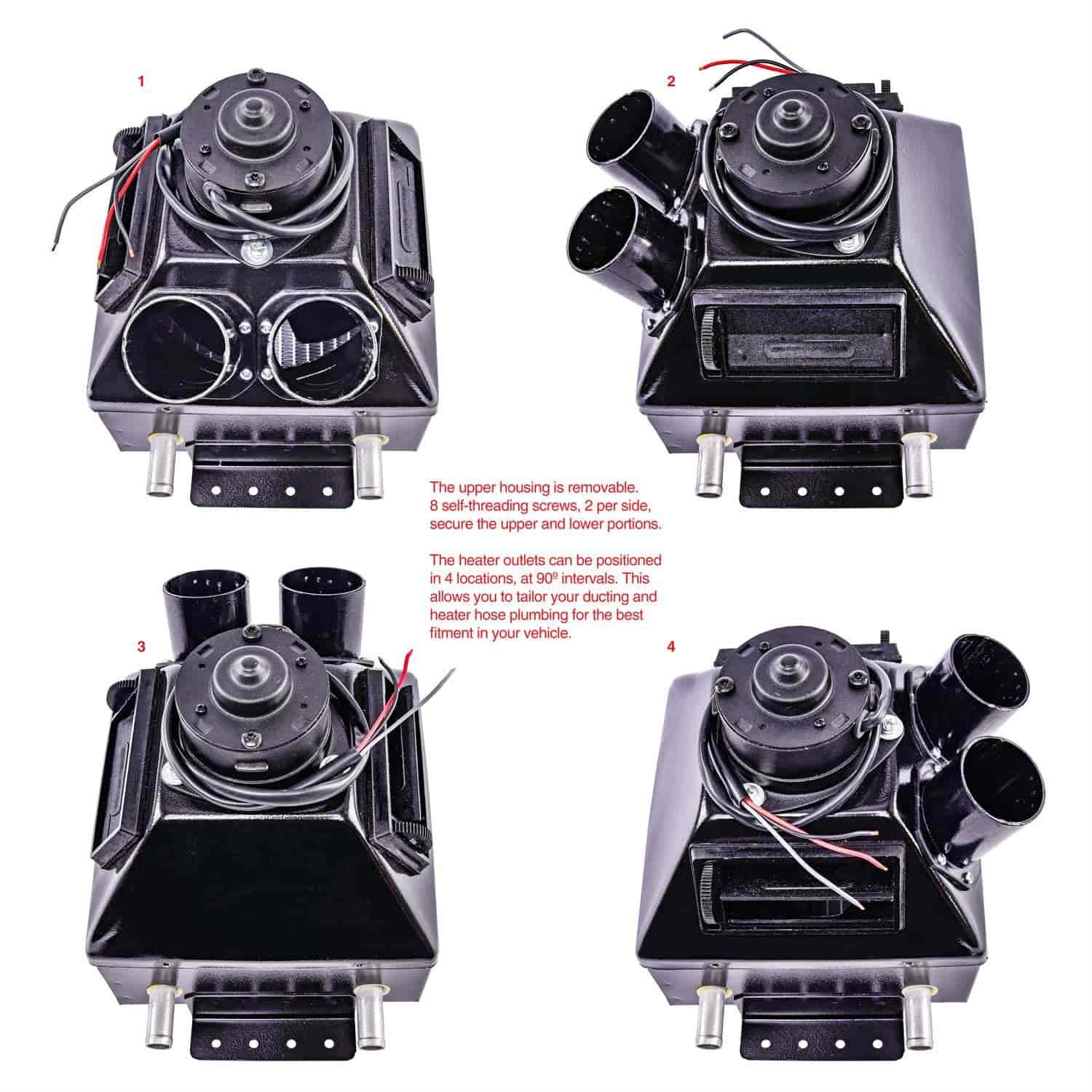

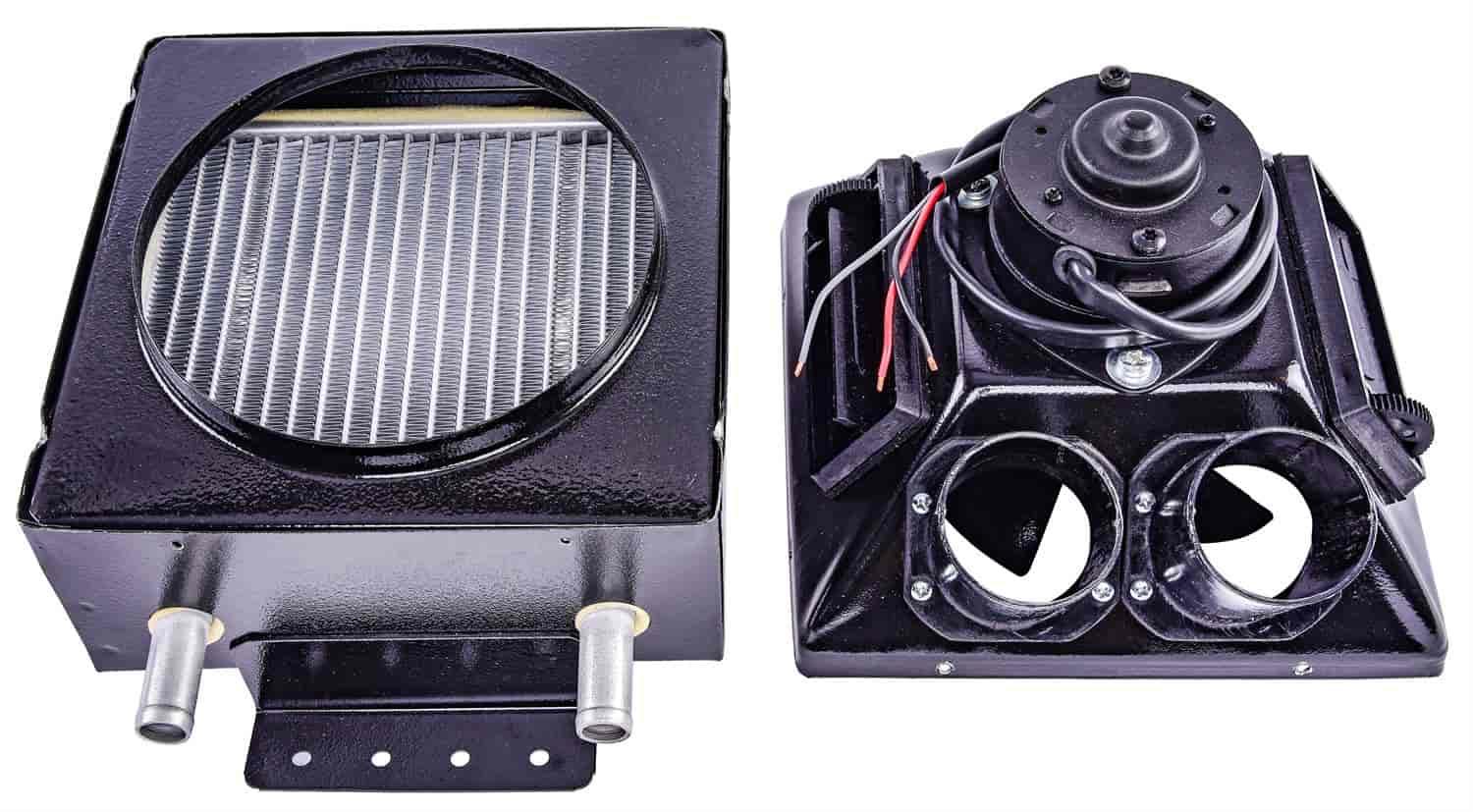

The top housing, secured by 8 Philips screws, can be rotated to suit your cockpit needs
The JEGS 70622 2-speed auxiliary heater assembly is an ideal way to plumb heating and defrost capabilities into your vehicle. The 2-speed fan and adjustable louver flaps let you tailor the heat to your needs. Don’t let cold weather stop you from enjoying your vehicle.
Features
Note: This heater assembly does not include defroster or louver ducting, these items are sold separately. Defroster kit 555-70607, Louver kit 555-70608
JEGS 70622 Hot Rod Heater 2-Speed Adjustable Louvers for Cabin Heat 10 1/4 in. L
