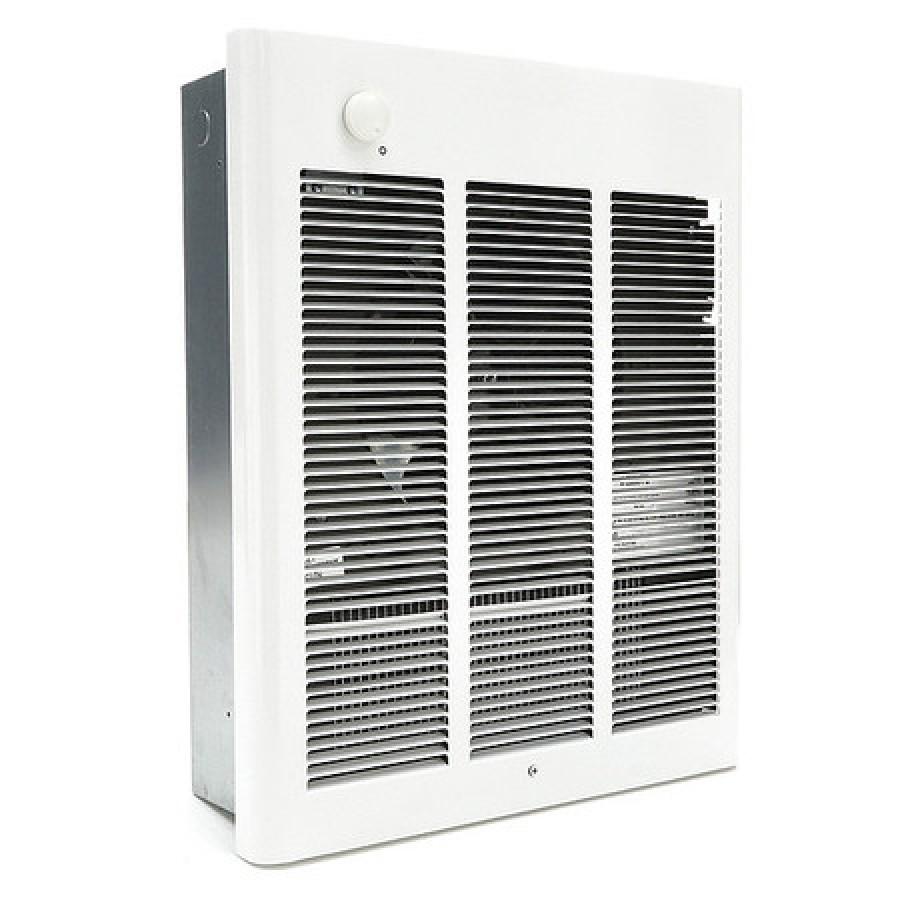

Recessed Electric Wall-Mount Heater, Light Commercial/Residential, 3000/1500, 4000/2000 Watts, 10,236/5,118, 13,650/6,824 BtuH, Heater Voltage 208/240 V AC, Electric Heater Phase 1, Wall Opening Width 14-5/8 In., Color White, 14.5/7.2, 16.7/8.3 Amps AC, Wall Opening Depth 3-7-8 In., Wall Opening Height 18-1/4 In., Mounting Type Surface and Recessed, 60 Hz, Air Temp. Rise 108 Degrees F, Grille Material Steel, Grille Width 15 3/4 in, Grille Depth 1 1/2 in, Grille Height 19 1/4 in
Features
- Electric Heater Item: Electric Wall Heater
- Electric Heater Type: Light Commercial/Residential
- Watts: 3000/1500, 4000/2000
- BtuH: 10,236/5,118, 13,650/6,824
- Heater Voltage: 208/240VAC
- Electric Heater Phase: 1
- Wall Opening Width: 14-5/8″
- Color: White
- Amps AC: 14.5/7.2, 16.7/8.3
- Wall Opening Depth: 3-7-8″
- Grille Depth: 1 1/2 in
- Manufacturers Warranty Length: 1 yr
- Grille Height: 19 1/4 in
- Standards: ETL Listed, cETL Listed
- Item: Recessed Electric Wall-Mount Heater
- Grille Material: Steel
- Housing Height: 18 1/4 in
- Mounting Type: Recessed or Surface
- Wall Opening Height: 18-1/4″
- Grille Width: 15 3/4 in
- Housing Width: 14 5/16 in
- Housing Depth: 3 3/4 in
- Features: Fan Time Delay, Double Pole Thermostat
- Air Temp. Rise: 108 Degrees F
- Hz: 60
- Finish: Baked Enamel
- Voltage: 208/240V AC
- Air Flow: 100 cfm
- Phase: 1
- Includes: Built-in Thermal Cutout, Fan Delay Switch
- Occupancy Sensor: No
- Building Management System Compatible: No
- Setback Control: No
- Automatic Fan Delay (On/Off): Yes
- Heater Mounting Position: Horizontal Burn
- Remote Control Functions: No Remote Control Included
- Wattage Output: 1,500W/3,000W, 2,000W/4,000W
- Thermostat Included: Unit-Mounted
- Minimum Mounting Distance from Ceiling: 36 in
- Housing Material: Steel
- Frequency: 60 Hz
- Voltage, Phase: 208/240V AC, 1-phase
- Disconnect Switch: No
- Thermostat Contact Type: Double Pole
- Heating Method: Fan Forced
- Minimum Mounting Height from Floor: 8 in
- Smart Connectivity: No Connectivity
- Filter Included: No
- Grille Finish: Enamel
- Programming Capability: Not Programmable
- Grille Color: White
- Control Type: Mechanical Selector Dial
- Heating Capacity: 5,118/10,236 BtuH, 6,824/13,650 BtuH
- Tamper Resistant: No
- Rough-In Width: 14 5/8 in
- Fan Only Operation: No
- Amperage: 7.2A/14.5A, 8.3A/16.7A
- Rough-In Depth: 3 7/8 in
- Thermal Overheat Protection: Manual Reset
- Rough-In Dimensions – H x W x D: 18-1/4 in x 14-5/8 in x 3-7/8 in
- Hold Function: No
- Wattage Field Convertible: Yes
- Rough-In Height: 18 1/4 in
- Zoro Benefits: 7,000+ Brands. Free Shipping. Hassle Free Returns.
“
- Item Type: Recessed Electric Wall-Mount Heater
- Brand: DAYTON
- Manufacturer Part Number: 3UG56
